JS Single Facer 0.05mm Coating Hard Chrome Doctor Roll

Brand Name : YH

Model Number : 1800-140

Place of Origin : Made in China

MOQ : 1 pcs

Price : 500-10000

Payment Terms : T/T

Supply Ability : 3000 pcs

Delivery Time : 30-45 days

Packaging Details : Wooden Boxes

Material : 45# round steel

Coating : Hard Chrome

Coating thickness : 30-50μm

Width : 1800mm

Diameter : 140mm

Refurbish : 2-3 times

Certification : ISO9001

Contact Now

For JS Single Facer Hard Chrome Doctor Roll DWC 1800mm Width

Doctor roll

Product name	Doctor roll
Application	Single facer, glue machine, double facer
Coating	Hard chrome 0.03-0.05mm
Diameter	50-500mm
The roller surface length	100-4000mm
Cylinder run-out accuracy	≤0.02mm
Cylindricity accuracy	≤0.015mm
Dynamic balancing accuracy grade G2.5	G2.5

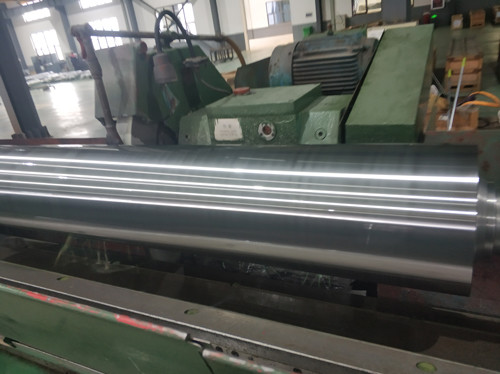

Advanced outer circle grinding machine

The outer circle grinding is same with pressure roll. After finish grinding, we coat hard chrome to exten its life time.

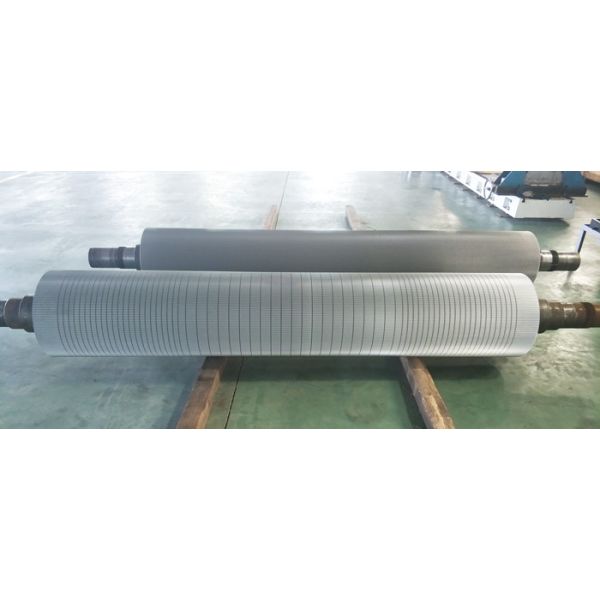

JS Single Facer 0.05mm Coating Hard Chrome Doctor Roll

JS Single Facer 0.05mm Coating Hard Chrome Doctor Roll
